CaneThumper®

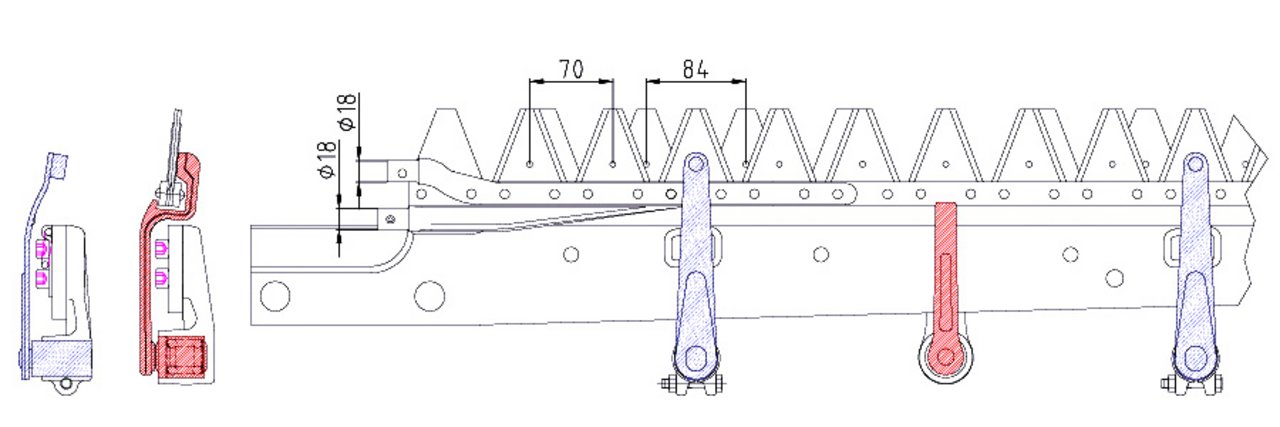

Cutting System Double Blade "bidux" 120. ****

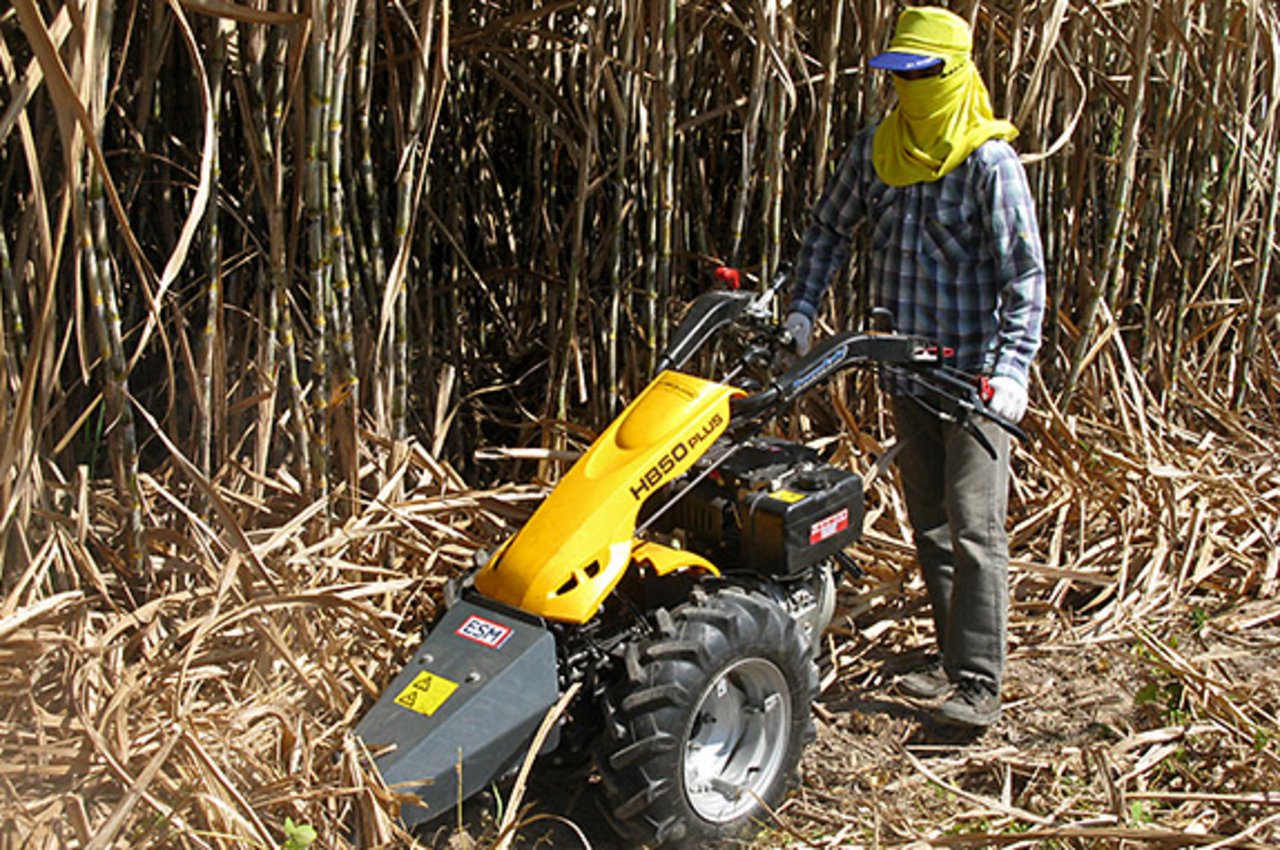

The ESM CaneThumper® powered by high qualtity, heavy duty implement carriers.

Specific features:
Top knife: Guide arm
Bottom knife: Guide arm

Special features

Robust designFor professional use. (Patent protected)
Excellent cutting performanceHigh harvesting speed.
Improved cuttingClean base cut and no stool damage.
Long service lifePatented ESM Carbodux® knife sections resistant against foreign obstacles like stones ect.
Minimal maintenanceLow blade speed; minimal blade wear; easy replacement of knife assemblies.
Comfortable handlingVibration-free operation.
Environmentally friendlyLow power consumption.
Safe handlingZero-second-safety-stop for drive mechanism; foot protection guards
Easy handlingCuts even on slopes (up to 55%/25° continously // 80%/35° intermediate); Cuts lodged cane, cuts green cane

CaneThumper®

Videos

https://www.youtube.com/watch?v=KDn4BKbqyUw

CT cutting USDA United States Department of Agriculture

https://www.youtube.com/watch?v=BQFWiI0RLos

ESM CaneThumper SoyabeanCutting

https://www.youtube.com/watch?v=rBFyNAJ0aaA

ESM CaneThumper Orchard Cutting

Attachements

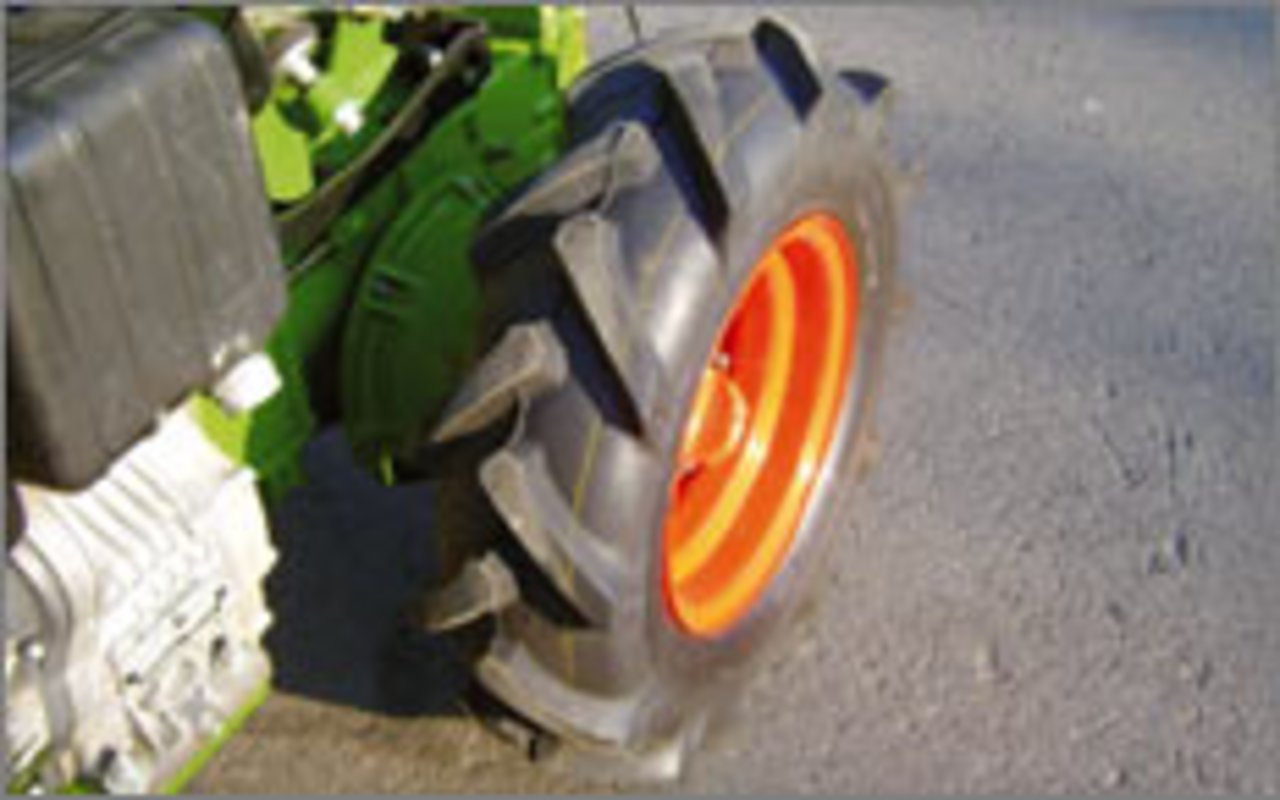

Single tyres, standard CaneThumper® execution for usage in flat and light slopy areas.

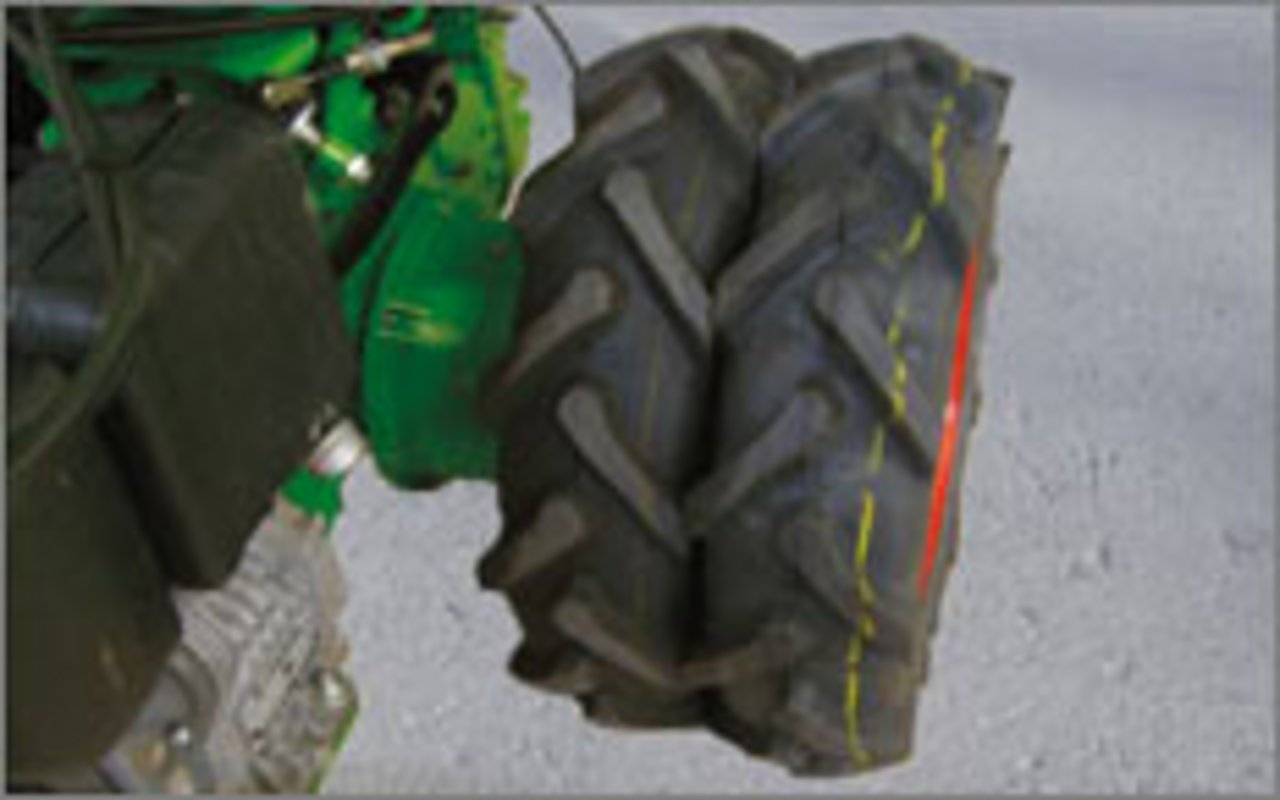

Twin tyres, special CaneThumper® attachement for operating on slopes.

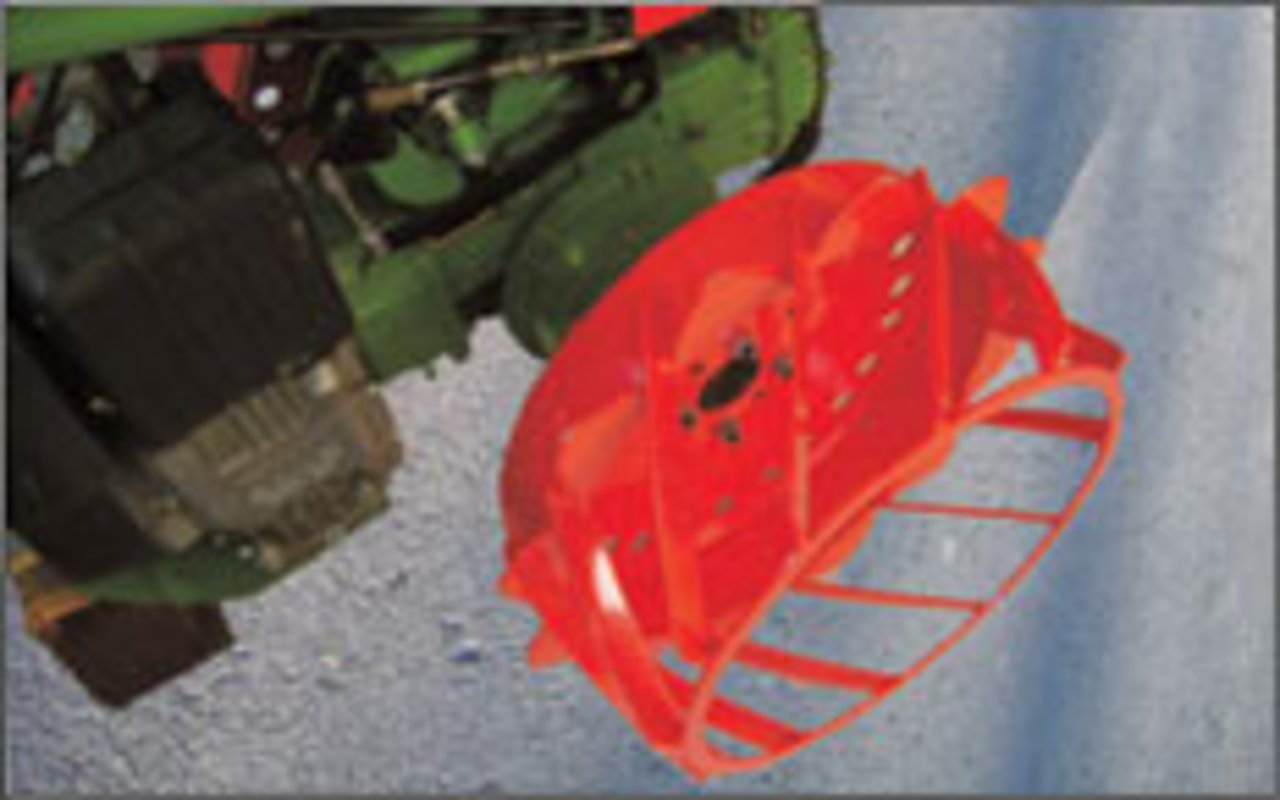

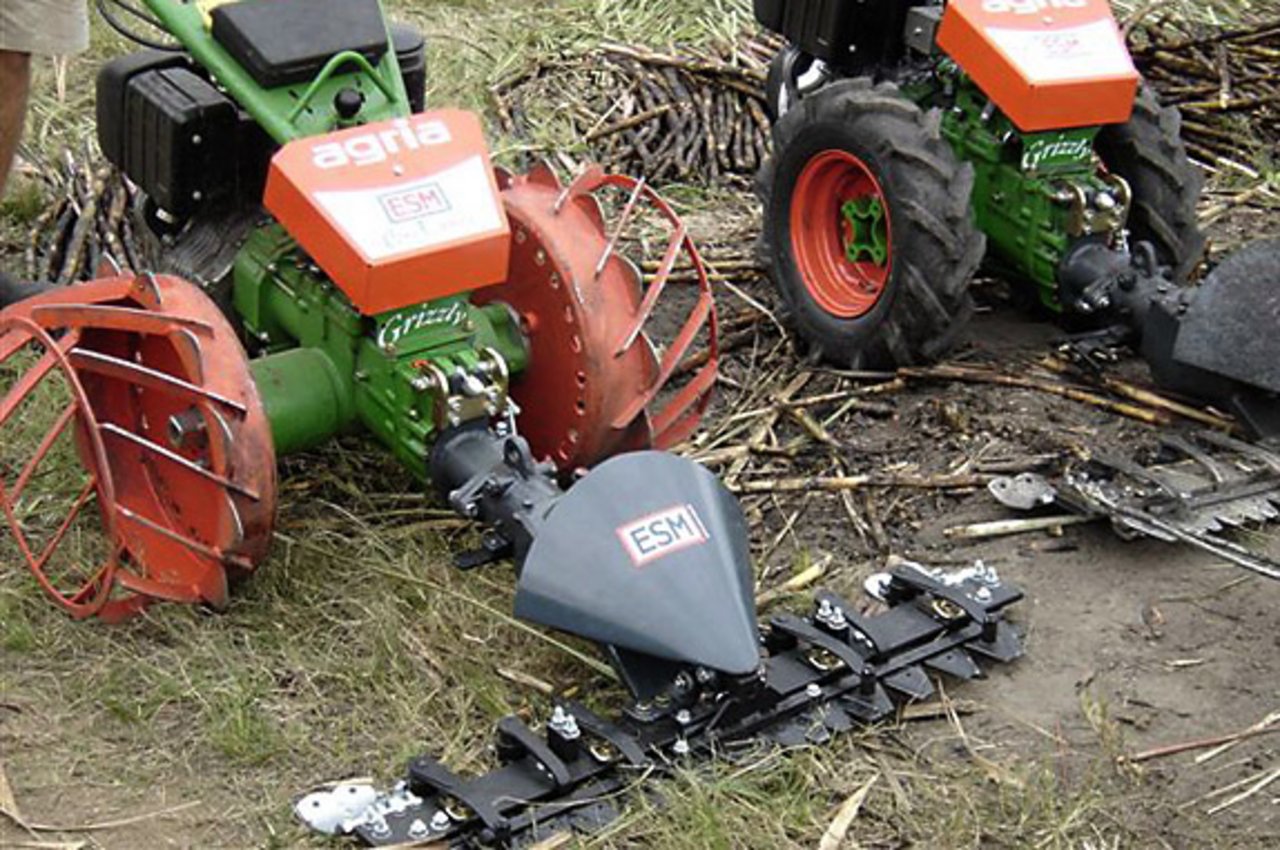

Metal grid wheels, special CaneThumper® attachement for operating on steep slopes.

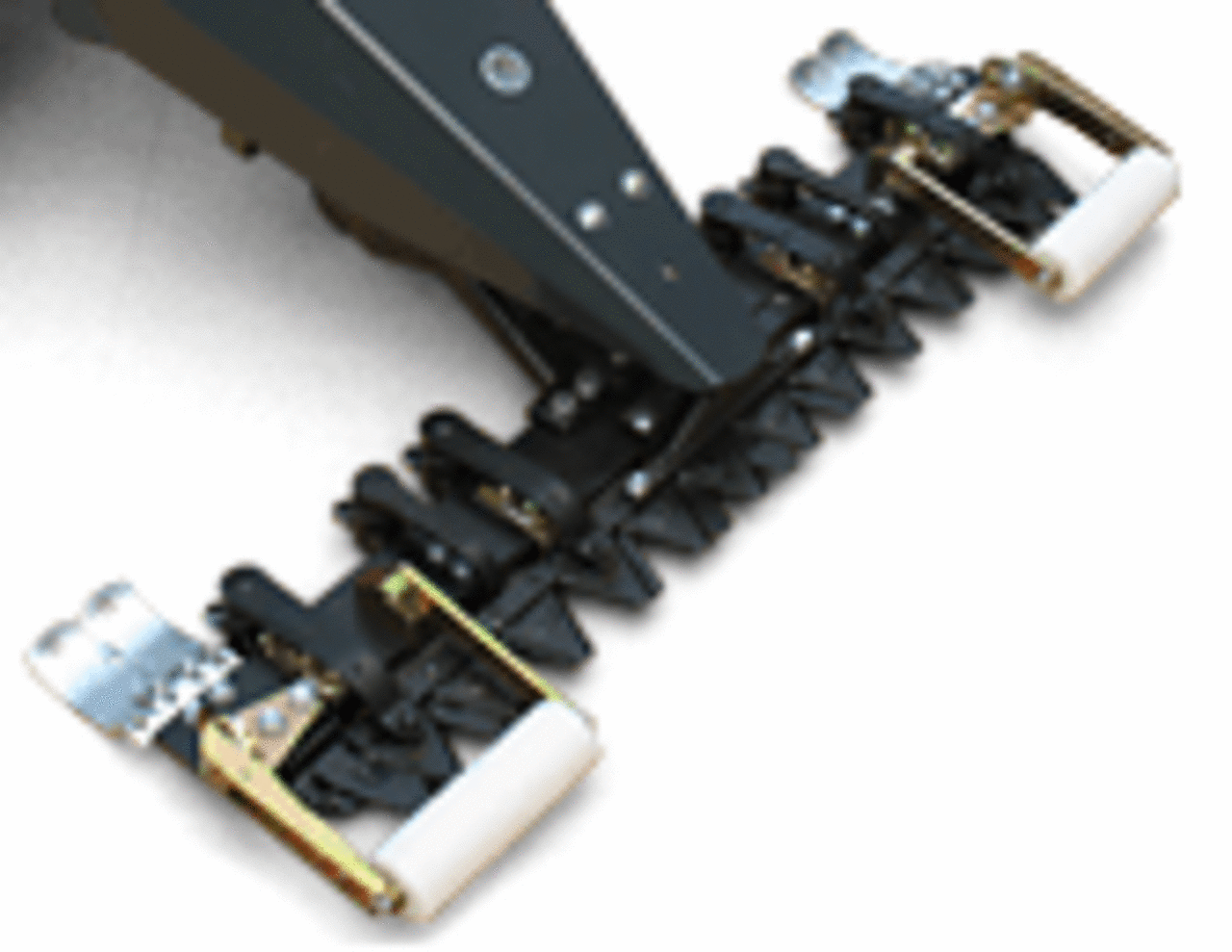

ESM heavy duty closed oilbath drive

Double knife Cutting UnitESM bidux®
Width of cutaccording to the planted rows
Section Pattern70 – 84 mm
Section ExecutionESM CARBODUX® hardfaced
Cutting Speeddepending upon crop volume
Power consumption per 1m of per 1m of cuttingmax. 3kw
Knife driving systemheavy duty closed oilbath drive, maintenance free

Carrier Unit BCS 740 „PowerSafe“
EngineYanmar L 100, 4 stroke Diesel engine
Power7,4kW (10 DIN-HP) at 3.200 rpm
alternative EngineHonda GX 390, 4 stroke Petrol enginegears with lockable differential
Power9,6 kW (13 DIN-HP) at 3.200 rpm
Transmission

mechanical gearbox with 3 forward and 3 reverse gears with lockable differential

Special features„PowerSafe” hydr. clutch system, steering breaks for each wheel
Additional optionsSingle tyres; twin tyres; metal grid whee


Further Information

Flyer

Description
Type
BCS 740 „PowerSafe“Download

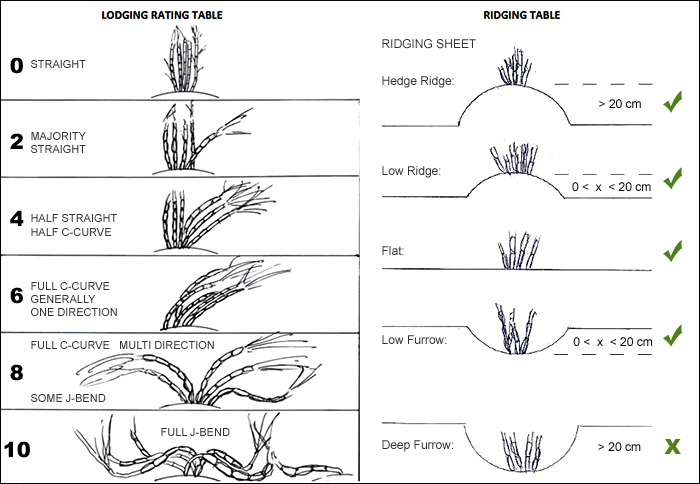

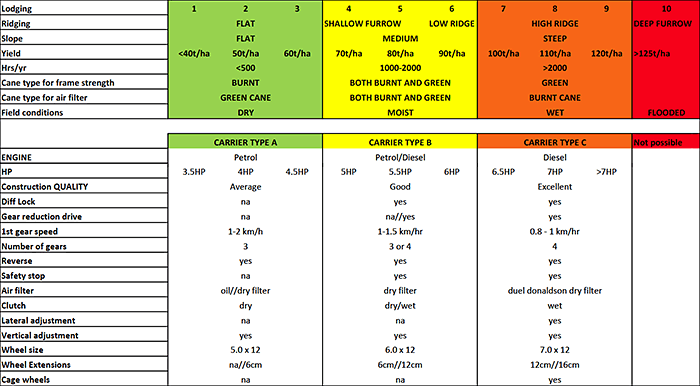

Cane and field conditionsDownload
Ridging TableDownload
