SickleSword®
Cutting System Double Blade "bidux" 117. ****

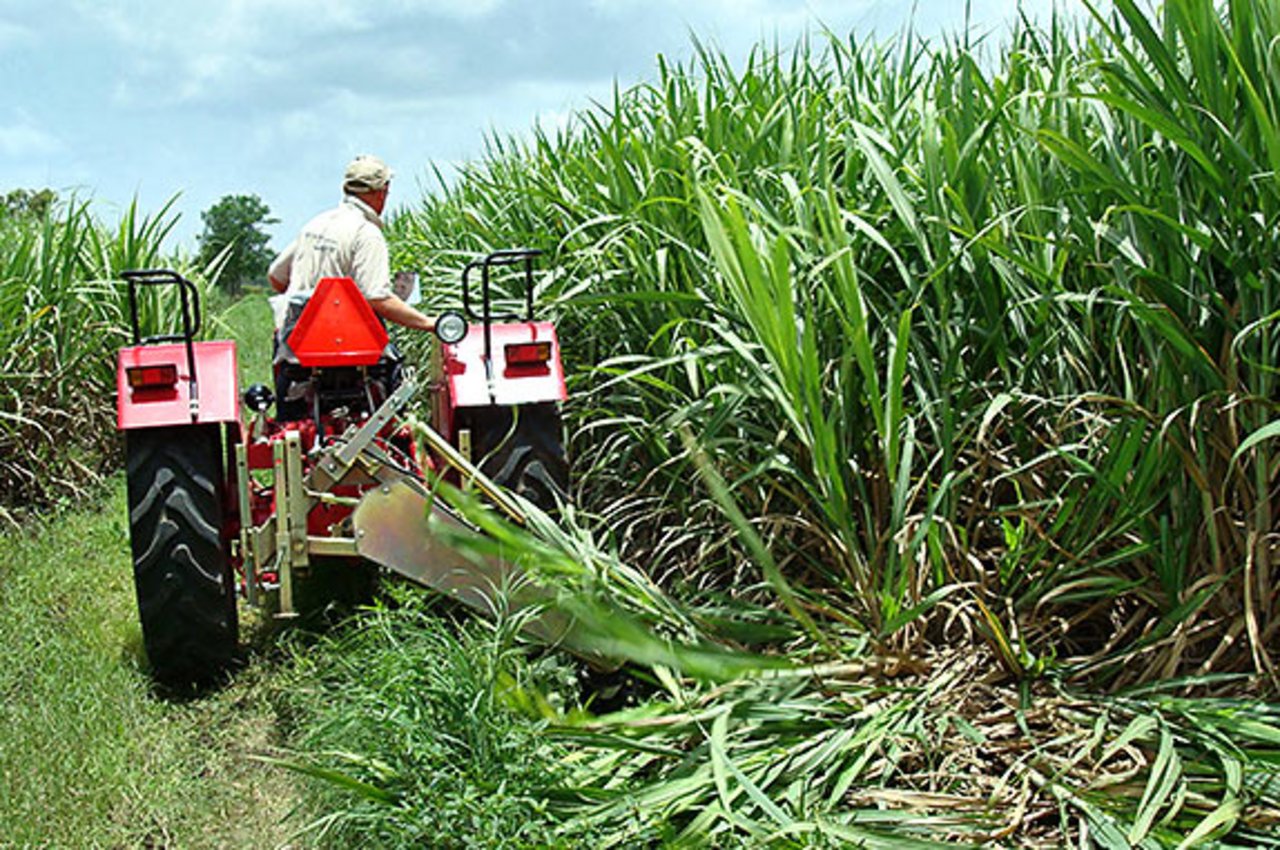

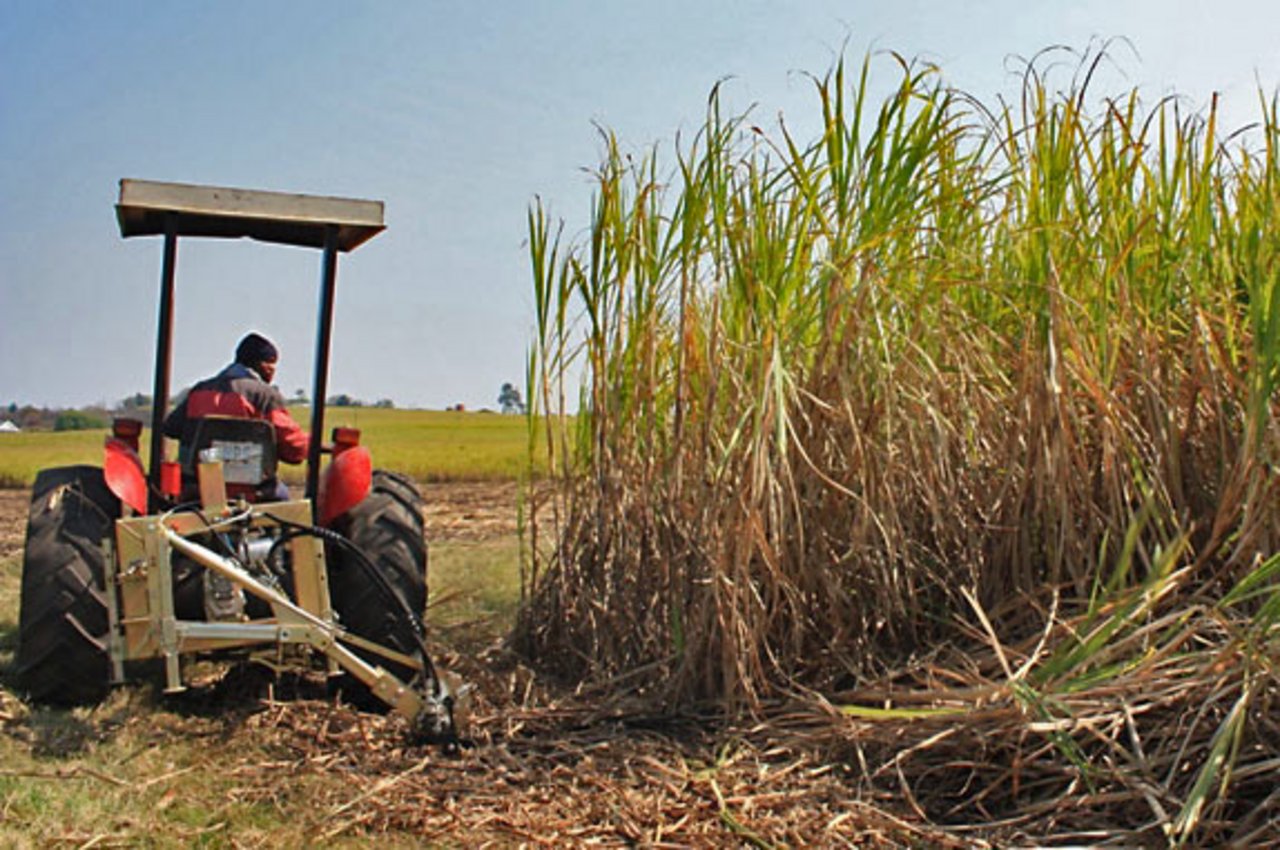

The ESM SickleSword® high performance double blade cutting technology!
The only one who cuts: sugarcane, sweet sorghum, elephant grass, cotton stalk and any kind of stalky crop!
Special features
| Robust design | For professional use. (Patent protected) |
| Excellent cutting performance | High harvesting speed, high tonnage results per hour |

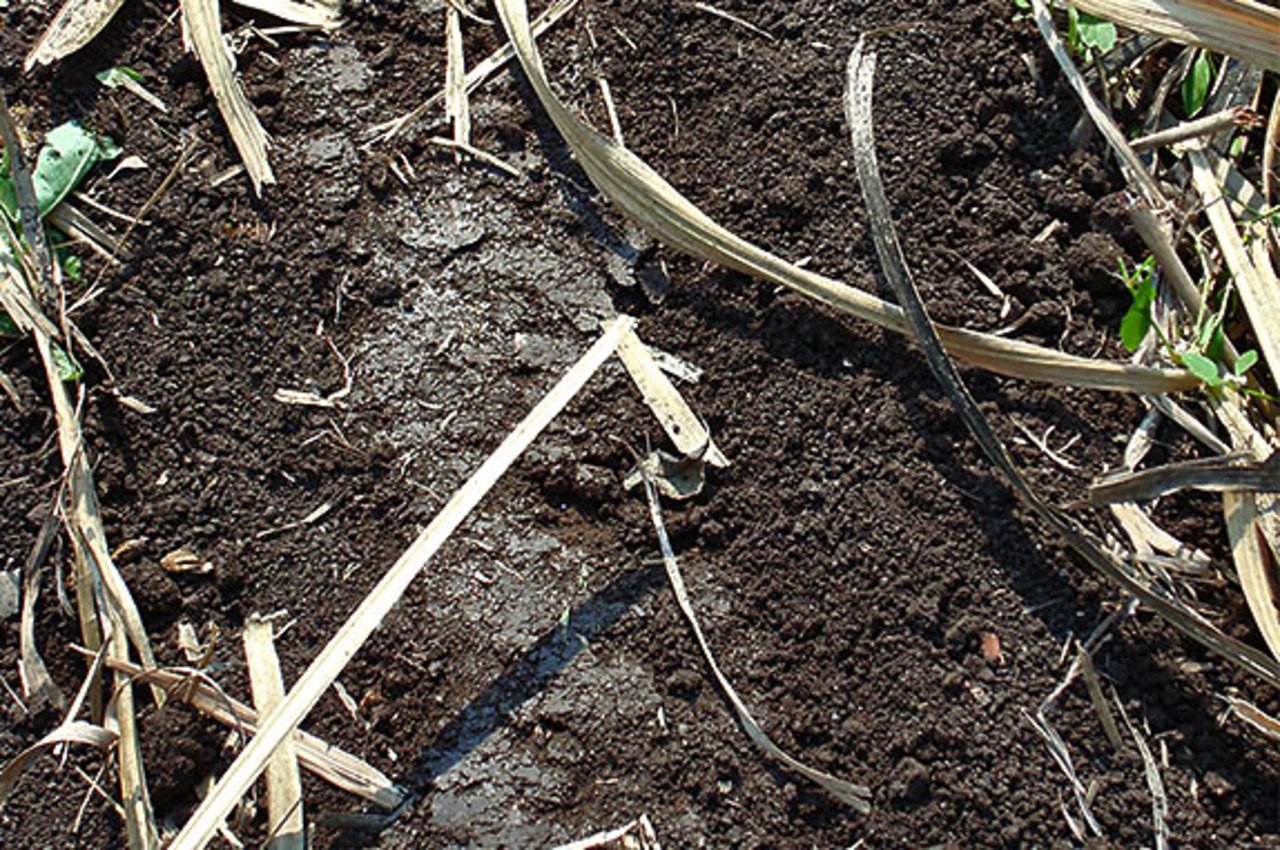

| Improved cutting | Clean base cut and no stool damage |
| Long service life | Patented ESM Carbodux® knife sections resistant against foreign obstacles like stones etc. |
| Safety breakaway mechanism | Automatic spring release system |
| Minimal maintenance | Low blade speed; minimal blade wear; easy replacement of knife assemblies |
| Environmentally friendly | Low power consumption |
| Easy handling | Three point linkage system fortractor rear lift linkages Cat I/ll, hydraulic cutter bar lifting system, weight transfer floating system for inner shoe driving mechanism, cuts lodged cane, cuts green cane |
SickleSword®
Videos
https://www.youtube.com/watch?v=S23nQXKqUTg
Philippine trip movie
https://www.youtube.com/watch?v=W6fnJ0TmppY
ESM SickleSword Sugarcane Cutter
https://www.youtube.com/watch?v=Y_Kgke7OSEk
ESM SickleSword ® 01
SickleSword® Implementation Reports
Technical data

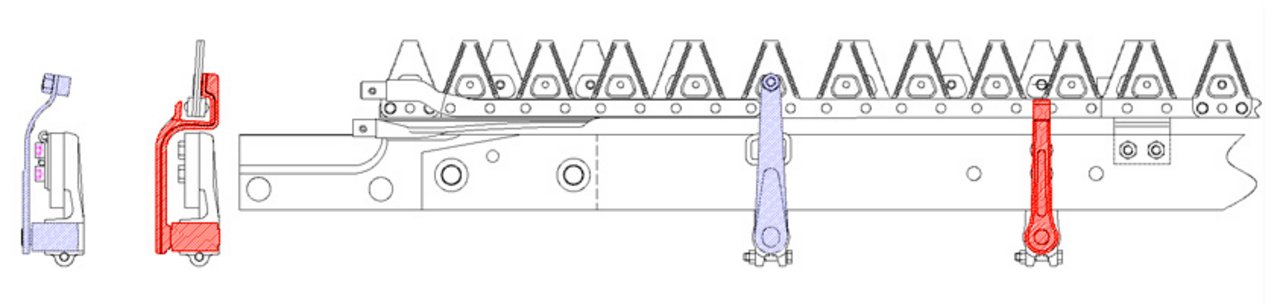

| Double knife Cutting Unit | ESM |
| Cutting width | Depending on row spacing with a choice of 1.1 and 1.7m cutterbar lengths |
| Section Pattern | 80 - 96 mm |
| Section Execution | ESM CARBODUX® hardfaced |
| Cutting Speed | Depending on conditions from 0.8km/h - 4km/h |
| Power consumption per 1m of per 1m of cutting | max. 3kw |

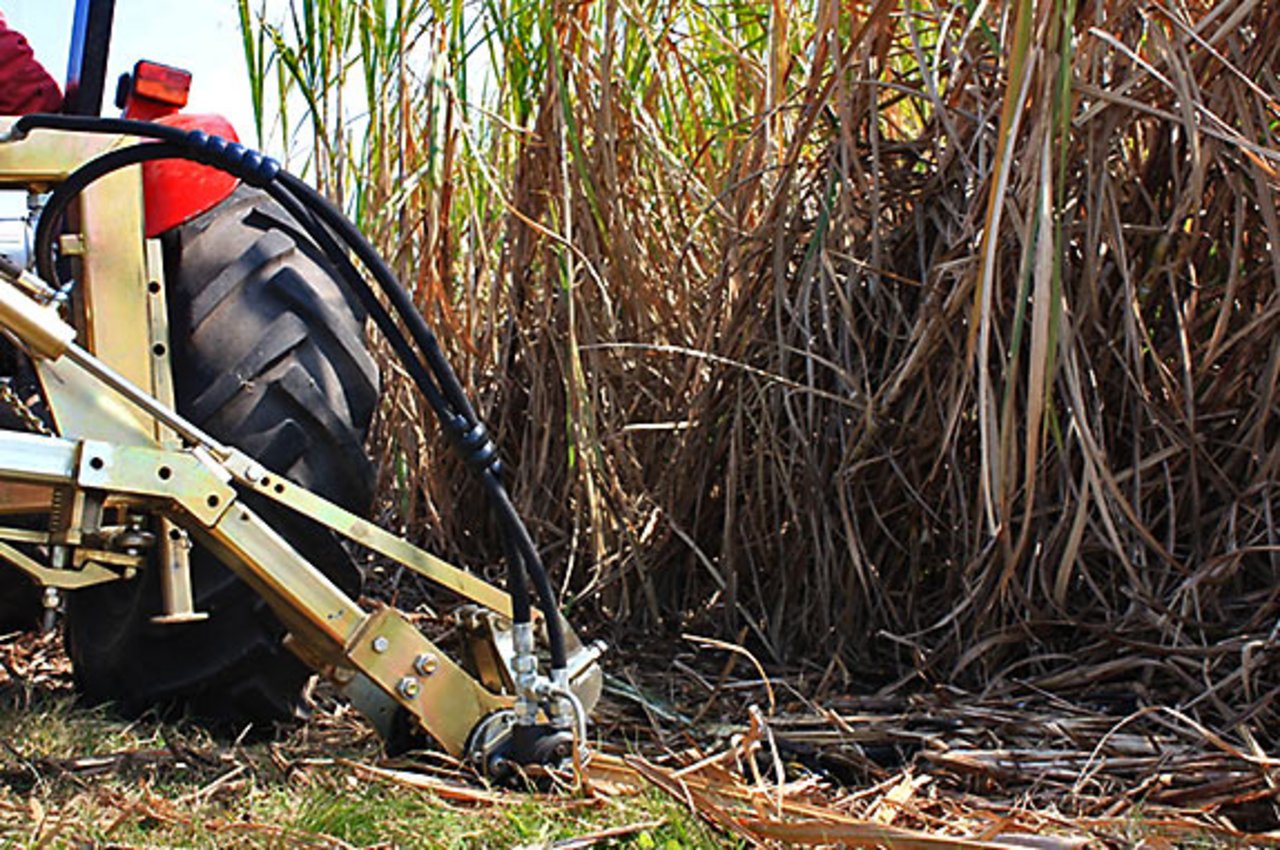

| Knife driving system | Heavy duty open pivot cutter drive, easy and simple to maintain, PTO shaft driving a hydraulic pump that powers the cutter drive |
| Carrier | Any tractor with 540 rpm PTO and CAT1/2 rear lift linkage |
| Cutterbar Safety breakaway mechanism | Automatic spring release system |
| Transport System | Cable retaining cutterbar in vertical position |
| Cutterbar lifting system | Manual or hydraulic depending on tractor Specs |
Product information
| Description | Type |
|---|---|
| SickleSword® handout | download |
