The VERTI-2-FLAIL® Vertical Flail Technology System

VERTI-2-FLAIL® Cutting System

Specific features:Tempered knife carriers patented flail knives

Special features

Robust design	For professional use in the toughest conditions. Tempered knife carriers, armoured knife mount system.
Long service life	Patented ESM "VERTI-2-FLAIL®" cutting system , specialized swing-mounted knifes.
Minimal maintenance	Quick and simple knife change. Only two knives per knife carrier.
Lean construction	Best suited for special uses for example on roadside vegetation or public green areas.
Comfortable handling	With the optional addition of the Saucer skid you get the simplest handling and best manoeuvrability.
Environmentally friendly	Power consumption 25 percent less than that of conventional flail technologies.
Work safely	Integrated automatic knife brake, compliant to EN 12733 for walk behind tractors.
Precise mowing and mulching	The ideal mowing equipment for mulching and fine mowing on extensively-use surfaces. No matter whether it’s grass care in gardening and landscaping, on roadsides, in orchards and vineyards, or in agriculture and forestry – wherever performance and robustness are required, VERTI-2-FLAIL® will show its strengths to the full. VERTI-2-FLAIL® guarantees an extremely clean cut, even in tall grass and brush or for cutting vines and saplings. Even branch thicknesses up to 50 mm pose no problem to the swing-mounted knife.

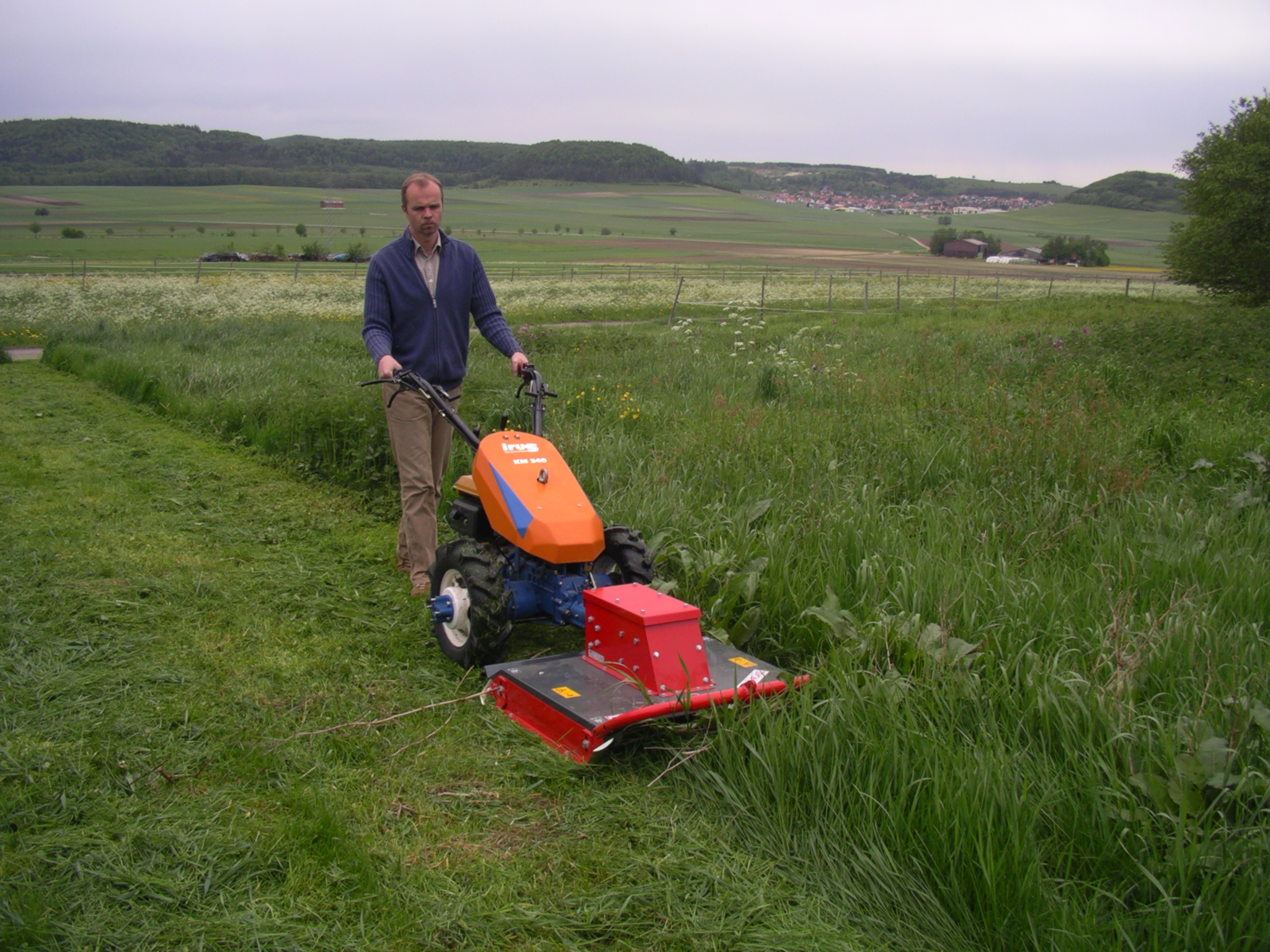

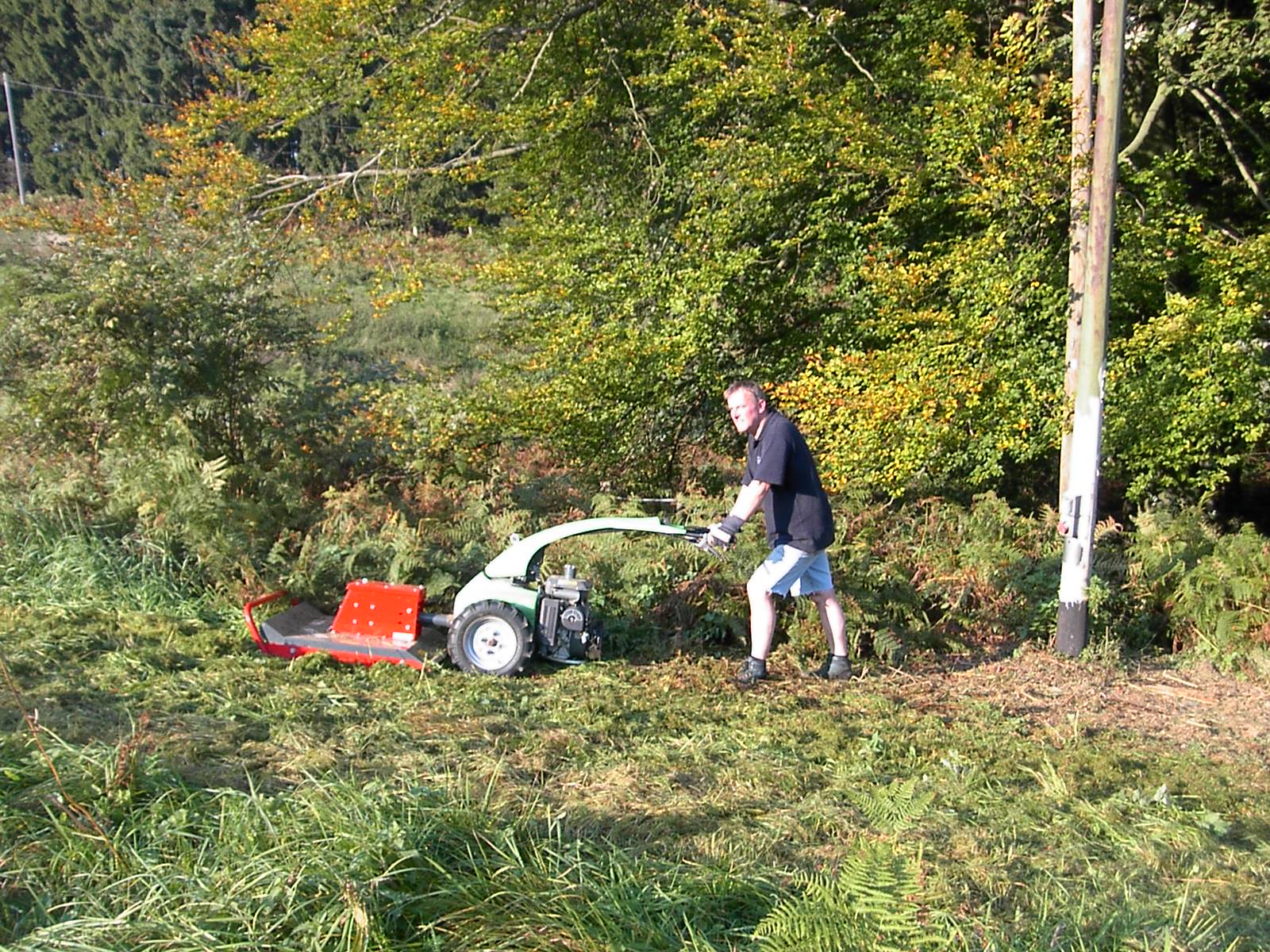

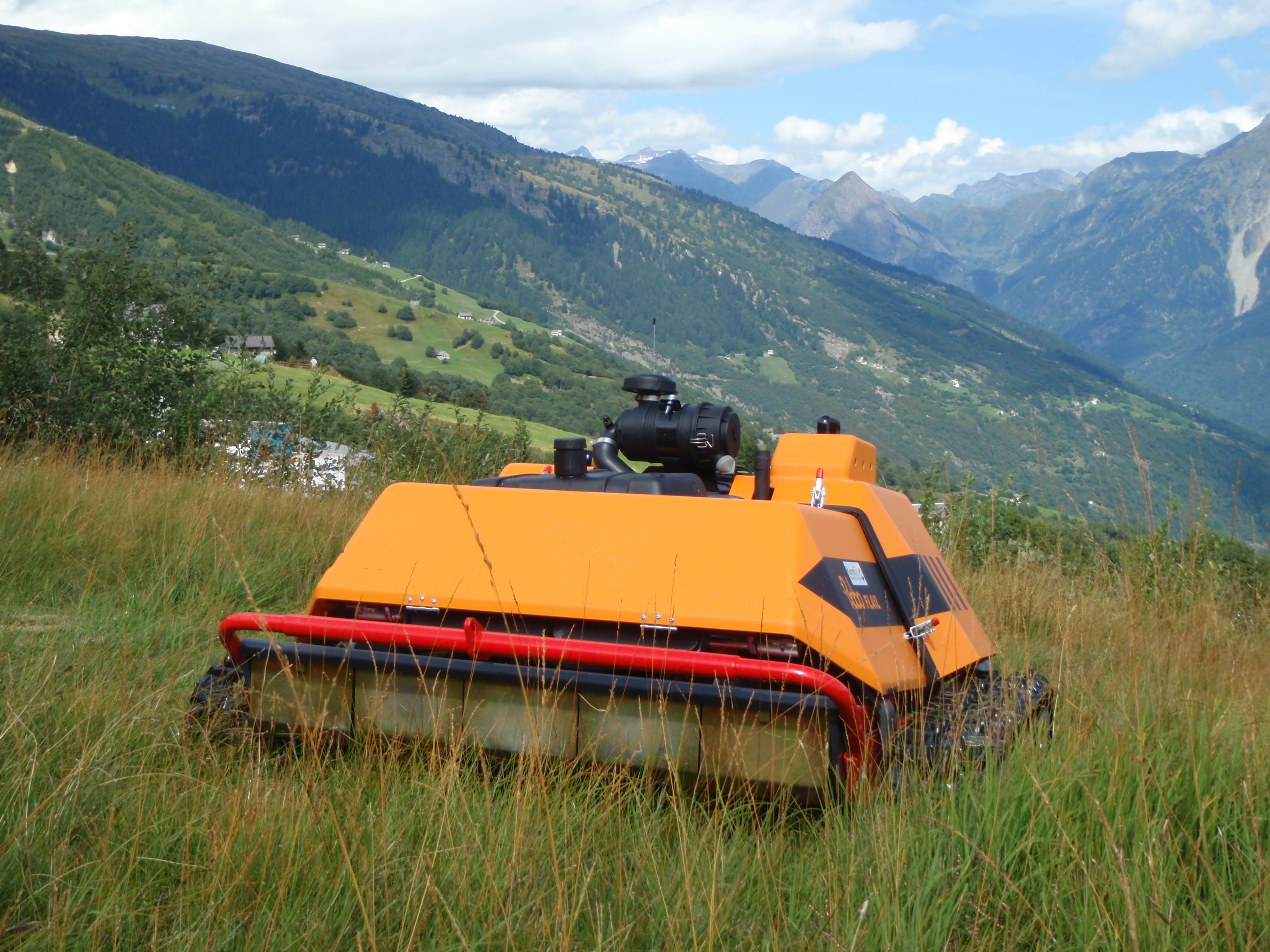

Sample applications

Videos

https://www.youtube.com/watch?v=sdvlGldbvKQ

https://www.youtube.com/watch?v=vg330KS31zM

https://www.youtube.com/watch?v=tKZCjCHIiB8

https://www.youtube.com/watch?v=euoFcd32DPk

click here to watch more Videos...

optional accessory

-> Auxiliary PTO drive interface

-> Belt drive applications

-> Hydraulic motor drivese

-> Standard PTO driveshaft aplications

Driving types and attachments

Adaptation of the ESM VERTI-2-FLAIL® mounted mowing system can be achieved with

Branch lifter set and fly wheel for care of Christmas tree plantations

Groundcopying saucer skids (fitted with ball bearings)

Road side aplication and transport caster wheel

Technical data

	Cutting width in cm	Weight in kg	min. power consumption required	Quantity of knives each deck	L x B x H in cm
VS-65	65	60	5,0 KW	2	82 x 73 x 33
VS-80	80	88	5,5 KW	2	105 x 88 x 38
VS-122	122	130	11,0 KW	4	95 x 133 x 45

VERTI-2-FAIL

Our long years of experience in developing professional cutting and mowing technology were the basis for developing our new cutting system VERTI-2-FLAIL®. At the core of the VERTI-2-FLAIL® technology are exception cutting and mulching quality, compact design, professional robustness and durability, as well as minimal power consumption
